ENGINEERING
SERVICES

We offer a multitude of services

MARINE ENGINEERING SERVICES

  • Pressure Testing of Fuel, Oil and Water Tanks and their respective pipelines
  • Hull integrity Surveys using Ultrasonic Wall Thickness
  • Design and drawings of various deck attachments and structural items
  • As-built drawings

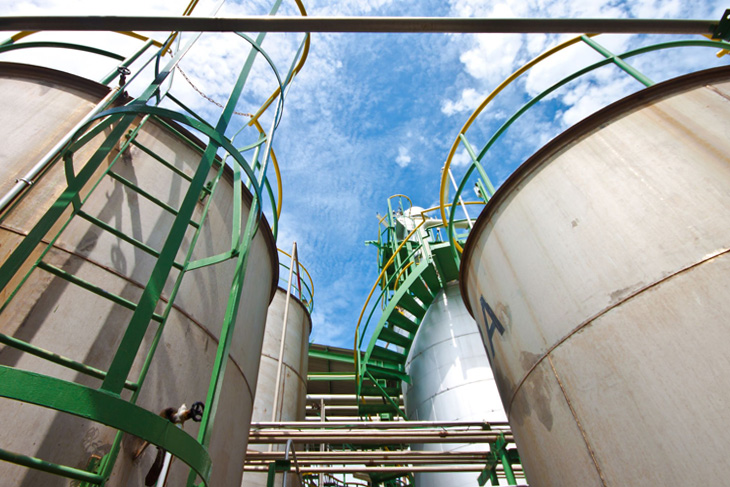

STORAGE TANK INSPECTION

  • Inspection of Above Ground bulk storage tanks in strict accordance with API 653
  • Design and Drawings of Tanks and Tank attachments
  • As-built drawings of Tanks and Tank attachments
  • General integrity surveys using Ultrasonic Wall Thickness
  • Quality Control during the remedial phase of in-service storage tanks
  • Certification of Storage tanks in accordance with API 653

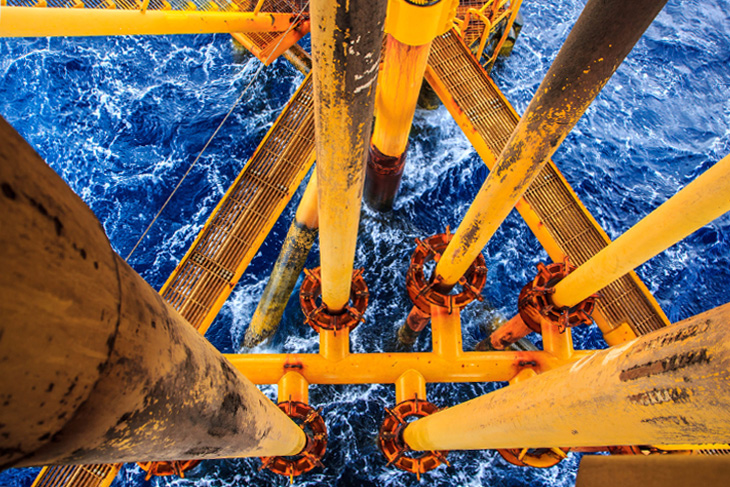

TRANSPORTATION PIPELINES

  • Inspection of Transportation Pipelines in strict accordance with API 570
  • Design and Drawings of Pipelines and Piping attachments
  • As-built drawings of Pipelines and Piping attachments
  • General integrity surveys using Ultrasonic Wall Thickness
  • Quality Control during the remedial phase of in-service Pipelines
  • Certification of Pipelines in accordance with API 570
  • Pressure Testing of pipelines

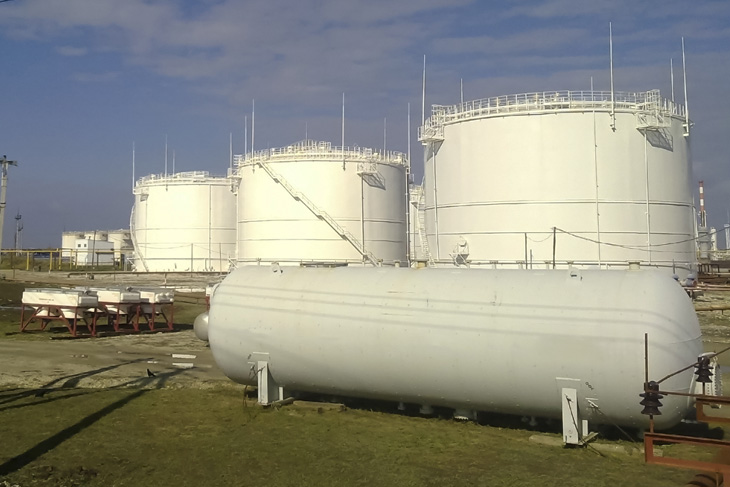

PRESSURE VESSEL TESTING & INSPECTION

  • Pressure Testing and Inspection of pressure vessels in accordance with the South African Pressure Equipment Regulation
  • Design drawings and simulations
  • SANAS calibrated equipment to Inspect and Test Pressure Vessels
  • In-Service Certification of Pressure Vessels using SANAS Accredited Inspection Authorities

VACUUM BOX TESTING

With the restriction and limitations of pressure testing, due to the configuration and practicality, many standards call for vacuum box testing of the welded seams to determine the tightness of the equipment.

Visioneering Consulting has the capability to design and manufacture custom vacuum boxes to test any joint- or surface configuration.

Standard Vacuum Boxes:

  • Flat Vacuum Box to test the platework or welded lap joints
  • 90° Corner Vacuum Box to test the welded seam between two perpendicular planes
  • 3-Plate Corner Vacuum Box to test the welded seam between three intersecting planes.

Typical instances where Vacuum Box testing is preferred to Pressure Testing:

  • Non-removable cladded vessels or storage tanks
  • Open to atmosphere storage tanks or containers

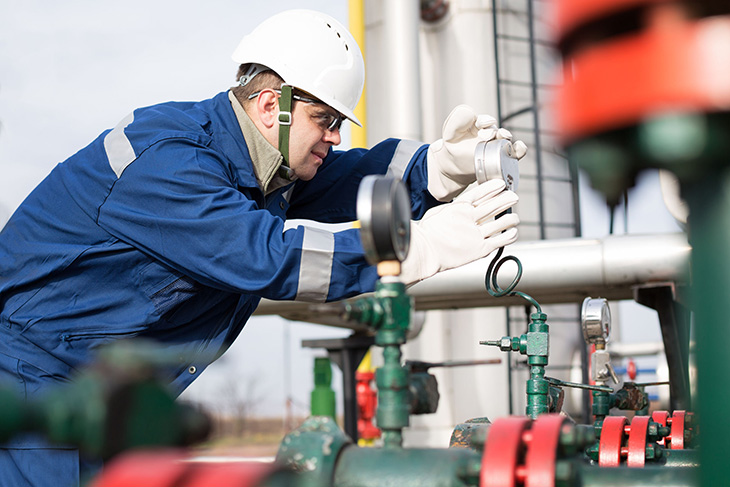

GAS TESTING

  • Initial Gas Testing of Confined Space Atmospheres
  • Constant Gas Monitoring of Atmospheres during confined space activities
